A JSON-driven product guide framework
A configurable framework that let the design team build product guides — like the AEO Jean Guide and a stop-motion animation built from image sprites — without engineering involvement.

- Zero
- Engineering tickets per new guide
- JSON-driven
- Layouts + animation behavior
- Sprite-based
- Stop-motion without video cost
- Reusable
- Several AEO category-page experiences
Problem
AEO's category pages needed varied, evolving "product guide" presentations — like the Jean Guide — to showcase products in context. Every new guide started life as a custom engineering build: spec, develop, QA, deploy. The design team had ideas faster than engineering could ship them, and the result was a backlog of guide concepts that never made it to production.
Approach
I built a JSON-driven product guide framework that flipped the workflow. Engineering shipped the framework once; the design team and business users configured the guides themselves.
The core ideas:
- Data-driven layout. Each guide is a JSON document — products, copy, settings — that the framework parses and renders into a fully responsive presentation.
- Multiple attributes per slot. The schema is rich enough to accommodate variations (size, position, animation, copy) so the same framework powers very different-looking guides.
- Authoring without engineers. Once the framework was in place, business users and the design team could create, adjust, and maintain product guides without filing engineering tickets.

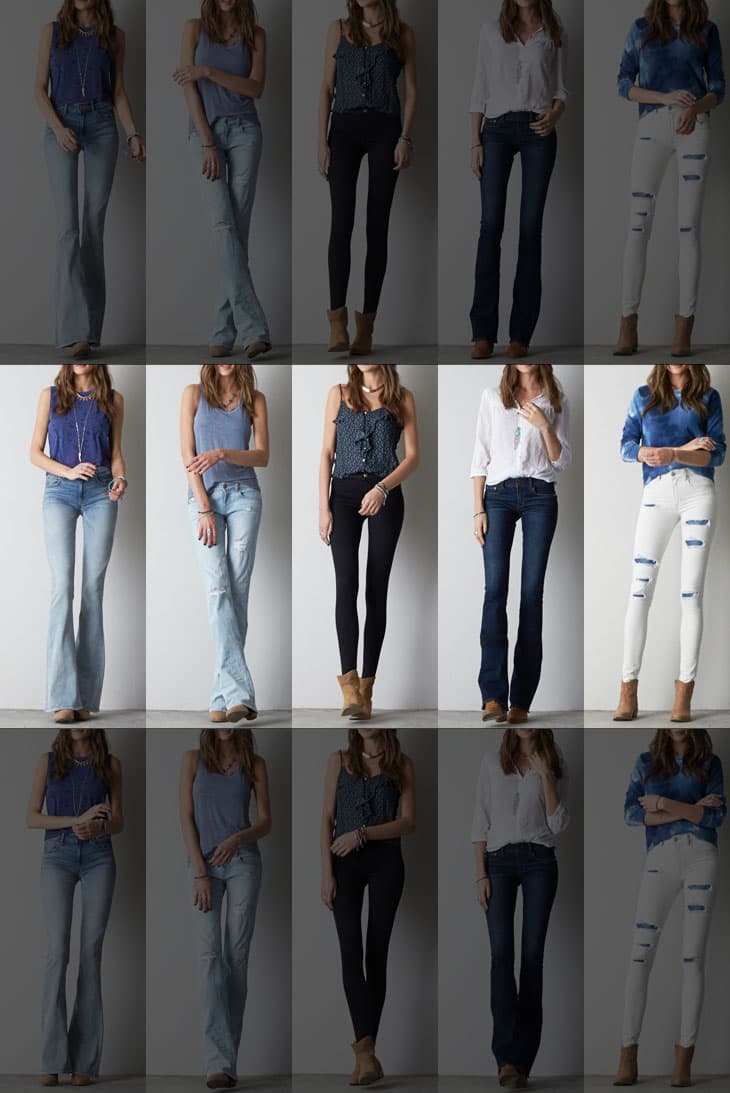

One showcase implementation was a stop-motion animation built from image sprites — the framework powered the configuration, and a sprite-driven approach gave the look of stop-motion without the cost (or playback overhead) of video. The animation speed, intervals, intro behavior, preview window size, and fade behavior were all configurable via a simple settings form.
The pattern here — make engineering's output configurable so non-engineers can iterate without filing tickets — became my go-to lever. It shows up again in the Master Module case study, the personalization framework, and the in-house headless CMS. The tradeoff is upfront design cost; the payoff is a permanently shorter cycle time.
The demo shows the stop-motion implementation with live configuration controls, so you can adjust the framework's settings and see the output update in real time.
Technical highlights
The naive way to animate "a random sprite, every couple seconds" — Math.floor(Math.random() * count) — looks alive for ten seconds and then betrays itself: the same sprite picked twice in a row, sprites animating off-screen while visible ones sit still, runs of repeated picks. The fix is rejection sampling: pick a random index, evaluate it against constraints, and re-roll if it fails. The constraints here are non-trivial — they encode viewport awareness and short-term memory, and the helper recurses until it lands a valid pick.
function checkNum() {
if (fullFunction) {
if (
activeAnimation < closestLeftAnimation || // off-screen left
activeAnimation > closestRightAnimation || // off-screen right
(activeAnimation === previousAnimation &&
animationCount > 1 && windowView > 1) || // immediate repeat
previousAnimations.lastIndexOf(activeAnimation) !== -1 // in recent-history buffer
) {
randomizeNumber(); // re-roll
} else {
loopAnimation(); // accept; play this one
}
} else {
// Fallback for IE8 (no Array#indexOf): only reject immediate repeats.
if (activeAnimation === previousAnimation && animationCount > 1 && windowView > 1) {
randomizeNumber();
} else {
loopAnimation();
}
}
}Two pieces of state make it work. closestLeftAnimation / closestRightAnimation are recomputed on every scroll so "visible viewport" is always current. previousAnimations is a sliding window cleared every time it fills the visible-sprite count — so every visible sprite gets a turn before anything is allowed to repeat. The math is simple; what's hard is recognizing that "random" isn't enough and that constraint-based sampling produces a more believable kind of randomness. The terminating condition isn't a counter but the constraints themselves — with N visible sprites and a sliding window of length N, the search space is always non-empty.
Each sprite has a sprite-sheet of N frames stacked vertically. The naive playback would advance through all N, reset to frame 0, and repeat — which reads as a hard cut every cycle. Ping-pong playback plays the frames forward, then reverses the next time it's selected, with the position counter carrying across selections. The trick is a parity check: hasPlayed % 2 chooses direction; loopCount tracks the current frame; top_pos accumulates as the sprite shifts. No reset, no jump, no flicker.
function loopAnimation() {
if (animations[activeAnimation].hasPlayed % 2 === 0) {
// Forward direction — shift sprite up by one frame.
animations[activeAnimation].top_pos -= animationHeight;
$(animations[activeAnimation].sprite).css('top', animations[activeAnimation].top_pos + 'px');
if (animations[activeAnimation].loopCount < animations[activeAnimation].frame_count - 1) {
animations[activeAnimation].loopCount += 1;
animationLoop = setTimeout(loopAnimation, animationData.speed);
} else {
updateArrays(); // hasPlayed++ → next selection runs the reverse branch
}
} else {
// Reverse direction — same machinery in reverse.
animations[activeAnimation].top_pos += animationHeight;
$(animations[activeAnimation].sprite).css('top', animations[activeAnimation].top_pos + 'px');
if (animations[activeAnimation].loopCount > 1) {
animations[activeAnimation].loopCount -= 1;
animationLoop = setTimeout(loopAnimation, animationData.speed);
} else {
updateArrays();
}
}
}The recursion is trampolined through setTimeout so the call stack stays at depth 1 — same pattern as the SPA-safe polling in the experimentation work. The position state persists across selections, which is what makes the animation read as continuous rather than jittery: a sprite selected three times will play frames 0→N forward, then N→0 reverse, then 0→N forward again, with no visible reset.
